Machine learning: Logistic regression to predict loan payback

This page presents the analytical steps following exploratory data analysis (EDA) and data pre-processing shown in the previous page. The next step in our analytical pipeline is to explore and compare modelling approaches. Here, I cover how to create a logistic regression model to predict whether a person will pay a loan back.

I’ve chosen logistic regression as my initial model because it’s a well-known and understood methodology. The idea is to compare this ‘classic’ model with other approaches to arrive at an optimal model, understanding advantages and drawbacks of using a method over another.

I’ll be using scikit-learn along other packages shown below. The specific environment used for the entire project is available here.

# set up
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
# ml methods
from sklearn.model_selection import train_test_split, cross_validate, \
    cross_val_predict, StratifiedKFold, KFold
from sklearn.linear_model import LogisticRegression
from sklearn.preprocessing import StandardScaler
from sklearn.metrics import RocCurveDisplay, confusion_matrix,\
    ConfusionMatrixDisplay, classification_report

Import processed data

Previously, I encoded the raw data obtained from Kaggle to make sure it was fit for machine learning. Here, I export it form a local directory and check the features after encoding.

# read encoded data
data_encoded = pd.read_csv('./data/data_train_processed.csv')
# the data_test.csv provided by kaggle doesn't have labels
# so data for splitting, model training, and testing will come from 'data_train'
# make a copy of encoded data to use for modelling
data = data_encoded.copy()
# check encoded version of data is what has been uploaded
features = sorted(data.columns)

features

['annual_income',
 'credit_score',
 'debt_to_income_ratio',
 "education_level_Bachelor's",
 'education_level_High School',
 "education_level_Master's",
 'education_level_Other',
 'education_level_PhD',
 'employment_status_Employed',
 'employment_status_Retired',
 'employment_status_Self-employed',
 'employment_status_Student',
 'employment_status_Unemployed',
 'gender_Female',
 'gender_Male',
 'gender_Other',
 'grade_subgrade',
 'interest_rate',
 'loan_amount',
 'loan_paid_back',
 'loan_purpose_Business',
 'loan_purpose_Car',
 'loan_purpose_Debt consolidation',
 'loan_purpose_Education',
 'loan_purpose_Home',
 'loan_purpose_Medical',
 'loan_purpose_Other',
 'loan_purpose_Vacation',
 'marital_status_Divorced',
 'marital_status_Married',
 'marital_status_Single',
 'marital_status_Widowed']

Pre-modelling steps

Separate features and labels

We’ll begin by saving the predicting variables (features) in a separate data object from the labels (payers vs. non-payers)

# separate features and labels (outcome)
X = data.drop('loan_paid_back', axis=1)
y = data['loan_paid_back']

Split data

Before we go into any models, it’s crucial to split the data into training/validation and testing sets. We’ll use 80% of the data for training/validation, and the remaining 20% for testing. We use this approach so the final model can be used on data it hasn’t seen before (i.e., the testing set), which gives us an idea of whether overfitting is occurring. Note that train_test_split() stratifies the data, which means the label imbalance (payer vs. non payers) observed in the global data set is preserved in the training/validation and test sets.

# data splits: training, validation, and testing
# (80% for training/validation, 20% for testing)
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2,
                                                    random_state=17)

Standardise data

As you might have noticed in the histograms and boxplots produced during EDA, we have data in different numeric scales. For instance, annual_income and loan_amount are expressed in thousands whereas intesrest_rate is expressed as a percentage.

To account for the different ranges in these numeric scales, we will standardise the data objects containing training and testing features. After standardisation, the mean of our numeric data will be 0 and the standard deviation will be 1. Note that standardisation is applied to both training and testing feature sets, but the scaler object applied to both sets is based on the training data.

# function to standardise data (mean = 0, stdev = 1)
def standardise_data(X_train, X_test):
    # intialise scaling object
    sc = StandardScaler()
    # set on the training set
    sc.fit(X_train)
    # apply scaler
    train_std = sc.fit_transform(X_train)
    test_std = sc.fit_transform(X_test)
    return train_std, test_std

X_train_std, X_test_std = standardise_data(X_train, X_test)

Fit logistic regression

K-fold cross validation

Below, we create a model object with the method of our choice, in this case logistic regression. Note that we set a class_weight argument within the model to account for the imbalance between classes observed during EDA. This argument applies weights to each class as specified in the scikit-learn documentation.

We fit that model using the standardised features and the labels from the training/validation set. Note that we use k-fold cross validation to randomly shuffle our training/validation data k-number of times. In this case, the regression will be run 10 times, each time using a different section of the data set for training and another for validation. The model will be tested on the validation set so it can return performance metrics, which we can average across the 10 runs. We can also set the cross_validate() method to return the generated models so we can extract coefficients.

# start modelling
# approach 1 - logistic regressions
model = LogisticRegression(class_weight='balanced')

# defaulted to stratified cross validation (cv) - i.e., percentage of sample
# in each label is kept consistent as possible
cv_results = cross_validate(
    model, X_train_std, y_train,
    # performance metrics to calculate
    scoring=['accuracy', 'precision_weighted', 'recall_weighted', 'f1_weighted'],
    n_jobs=-1,
    # number of folds
    cv=10,
    # return trained models for each fold
    return_estimator=True # increases running time a little
    )

Extract coefficients

Using the generated models stored in our cross-validation results, we can calculate the mean coefficient for every feature across all 10 runs of the logistic regression. We can then create a table with every feature and its average coefficient. If you get the absolute value of the coefficients and sort them in descending order, you will see which features had the largest effect at predicting loan payback, regardless of whether that effect was positive or negative. I’ll present the 10 features with the greatest influence, but feel free to check the rest by clicking on the arrow.

# extract coefficients from models generated in cross val
co_eff_df = pd.DataFrame()
co_eff_df['feature'] = list(X_train.columns)

coefficients = []
for model in cv_results['estimator']:
    # append array of coefficients
    coefficients.append(model.coef_[0])

# calculate mean coefficient for every feature
mean_coefficients = np.mean(coefficients, axis = 0)
# save into coeff df
co_eff_df['mean_coefficient_cv10'] = mean_coefficients
# sort by absolute value (derived from mean coeff to understand magnitude)
co_eff_df['co_efficient_abs'] = np.abs(co_eff_df['mean_coefficient_cv10'])
co_eff_df.sort_values(by='co_efficient_abs', ascending=False, inplace=True)
# present 10 top features by absolute coefficient value
co_eff_df[0:10]

co_eff_df

Model evaluation

Confusion matrix

Evaluation metrics of model performance assess correct vs. incorrect predictions of a model. Before diving into specific metric evaluation, you can make a visual assessment of model performance via a confusion matrix. We can plot the rates of true positives and true negatives (i.e., the correct predictions) and the rate of false positives and false negatives (i.e., the incorrect predictions). To compute these rates, we need to compare model predictions vs. actual labels in the data. The ConfusionMatrixDisplay() and from_estimator() methods can do just that!

ConfusionMatrixDisplay.from_estimator(model, X_train_std, y_train,
                                      display_labels=['Non-payer','Payer'],
                                      cmap='PuBuGn',
                                      normalize='true')
plt.title('Normalised confusion matrix:\n10-fold cross validation')
plt.show()

Our logistic regression does well at predicting loan payers: 88% of those predicted to be a payer were indeed one vs 12% predicted not to be a payer, who actually did pay back (i.e., false negatives). In contrast, 77% of non-payers were predicted correctly, but 23% were wrongly assigned to the payer group. In a real world scenario, this false positive rate would have important financial implications: 23% represents 22,081 loans that were not paid back but the model predicted were paid. Imagine if each loan was worth £5,000 on average!

We’ll see below that logistic regression performs well overall, but we would still benefit from further tuning or other methods to address the false positive rate.

Performance metrics

Along with the 10 logistic regressions, the cross_validate() method returned 4 performance metrics: accuracy, precision, recall, and F1 score. Each of these metrics was calculated 10 times, each time by testing the generated model on the validation set for the corresponding k-fold. Since the initial model object was a logistic regression weighted to account imbalanced classes, I deemed appropriate to request performance metrics that also weighted class imbalance. We can plot the distributions of those metrics across the 10 runs in a boxplot.

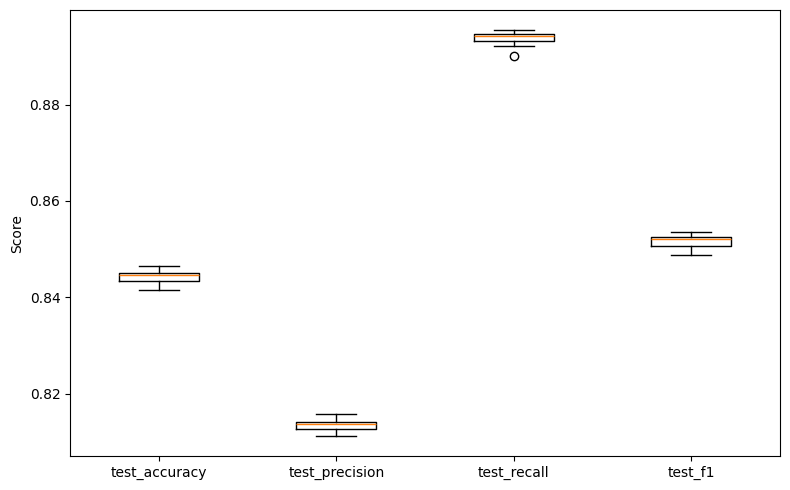

# plot distribution of performance metrics shown in classification report
performance_metrics = pd.DataFrame(cv_results).drop(
    columns=['fit_time', 'score_time', 'estimator'])

# plot metrics obtained via stratified kfolds
# the test_ metrics refer to the the 10th fold
plt.subplots(figsize=(8,5))
plt.boxplot(performance_metrics, labels=performance_metrics.columns)
plt.ylim(0.85, 0.9)
plt.ylabel('Score')
plt.tight_layout()
plt.show()

The plot suggests the performance scores were relatively stable between model runs for all measures of interest, given the narrow range between the boxes’ whiskers. We have generally good scores across measures (>0.85) but it’s still worth going through them.

The model was generally accurate (i.e., the proportion of correctly classified labels was high), but that alone mustn’t be used to interpret performance - which is why precision, recall, and F1 scores are needed.

The model was more precise than sensitive, which means it was better at labelling payers correctly (when it made a prediction) than it was at finding all cases of payers in the data. This all boils down to having more false negatives than false positives, which we can see in the non-normalised confusion matrix below.

The F1 score balances precision and recall, so it will be more useful when we compare modelling methods. More information about the methodology used to apply weights to these measures is available here.

ConfusionMatrixDisplay.from_estimator(model, X_train_std, y_train,
                                      display_labels=['Non-payer','Payer'],
                                      cmap='PuBuGn'
                                      )
plt.title('Raw confusion matrix:\n10-fold cross validation')
plt.show()

ROC curve

Using a receiving operator characteristic (ROC) curve, we can plot the true positive rate against the false positive rate, as well as calculate AUC (area under the curve). Making a ROC curve plot is useful to see how the model fares against randomness. The dotted line in the plot represents a random classifier, that is a scenario where a model is no better at predicting outcomes than random chance. It is useful to plot this line as a benchmark. The more the ROC curve approaches the top left corner of the plot, the closer the model is to be a perfect classifier.

Overall, our logistic regression fares well using this assessment, but there could still be room for improvement, which we might achieve in other models.

# receiver operator characteristic curve
# plot specificity (false positive rate) vs recall (aka sensitivity; true positive rate)
roc_curve = RocCurveDisplay.from_estimator(model, X_train_std, y_train, pos_label=1)
fig = roc_curve.figure_
ax = roc_curve.ax_
# plot chance
ax.plot([0,1], [0,1], color='darkblue', linestyle=':')
plt.show()

Next, I will test other ML approaches and compare them against our baseline results from fitting a logistic regression.
